MicroPhase ANTSDR U220 SDR Demo Board 70MHz-6GHz SDR USB3.0 ADI AD9361 AD9363 MIMO srsRAN
Write a review
€76017 €84580

MicroPhase ANTSDR U220 SDR Demo Board 70MHz-6GHz SDR USB3.0 ADI AD9361 AD9363 MIMO srsRAN

MCRP-PLTS-FCRBUH
Write a review
14 Days
Price in points: 870 points
Reward points: 17 points
+ −
Add to wish list Compare Ask a question Please login to request quote for this product
If you order now
Destination: Netherlands
Estimated ship time
1 day
Thu, Aug 13
Estimated delivery
7-8 business days
Estimated total transit
Delivery

We offer free shipping for orders over 415 EUR. Free shipping also applies to products marked with the Free Shipping sticker, even if the order total is below this amount. Availability and delivery times may vary depending on your country.

Check delivery carriers
Payment options
Mastercard Visa IDeal Bancontact Bank Transfer
Explore and use a variety of other convenient payment methods available at the checkout page.
More details
Our advantages
  • Order Protection: If your order is lost, we guarantee a replacement or a refund. Terms apply.
  • Easy Returns: Enjoy a simple and hassle-free return process.
  • Flexible Payments: Choose from multiple secure payment options that fit your needs.
  • Best Prices: Get the best value on all our products.
Description

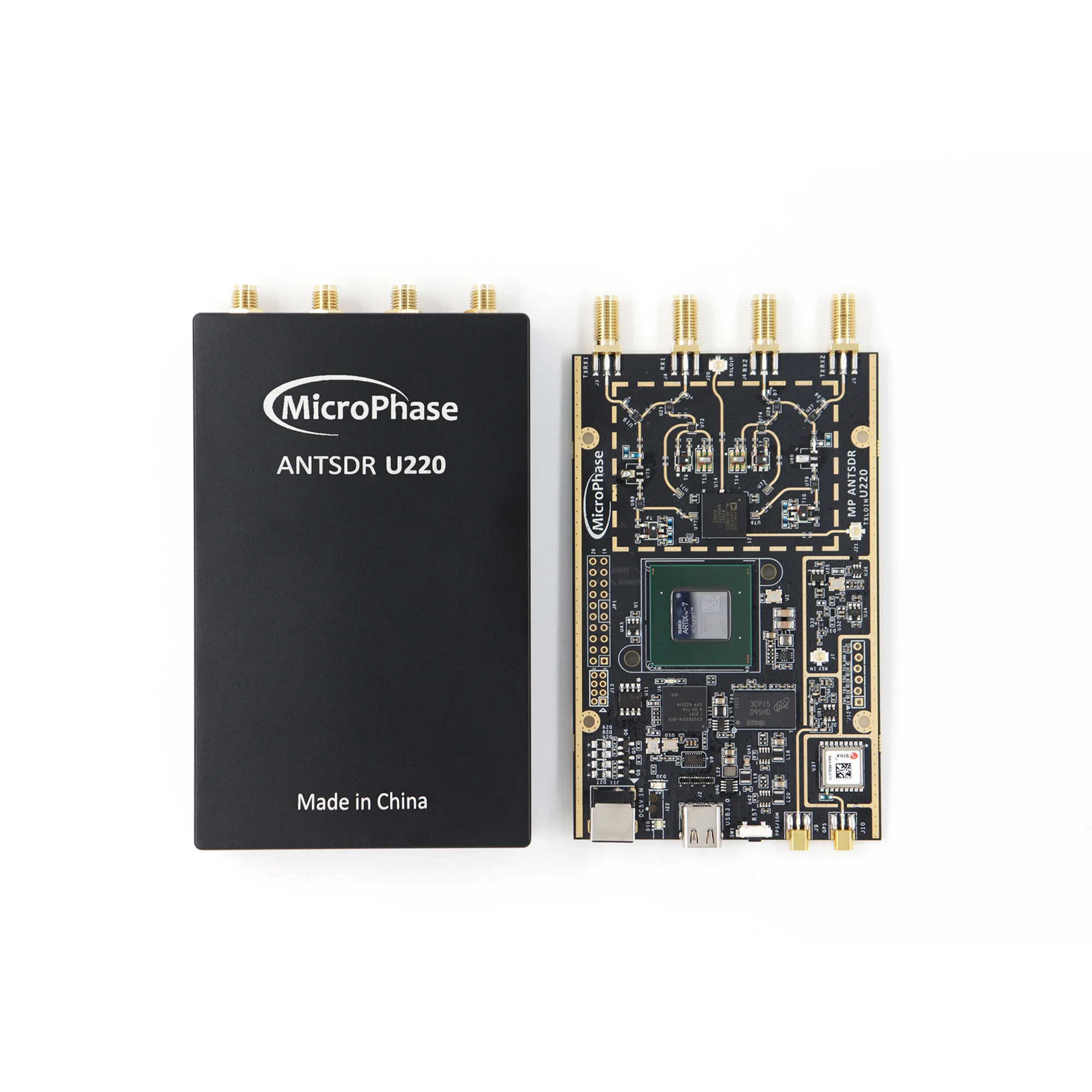

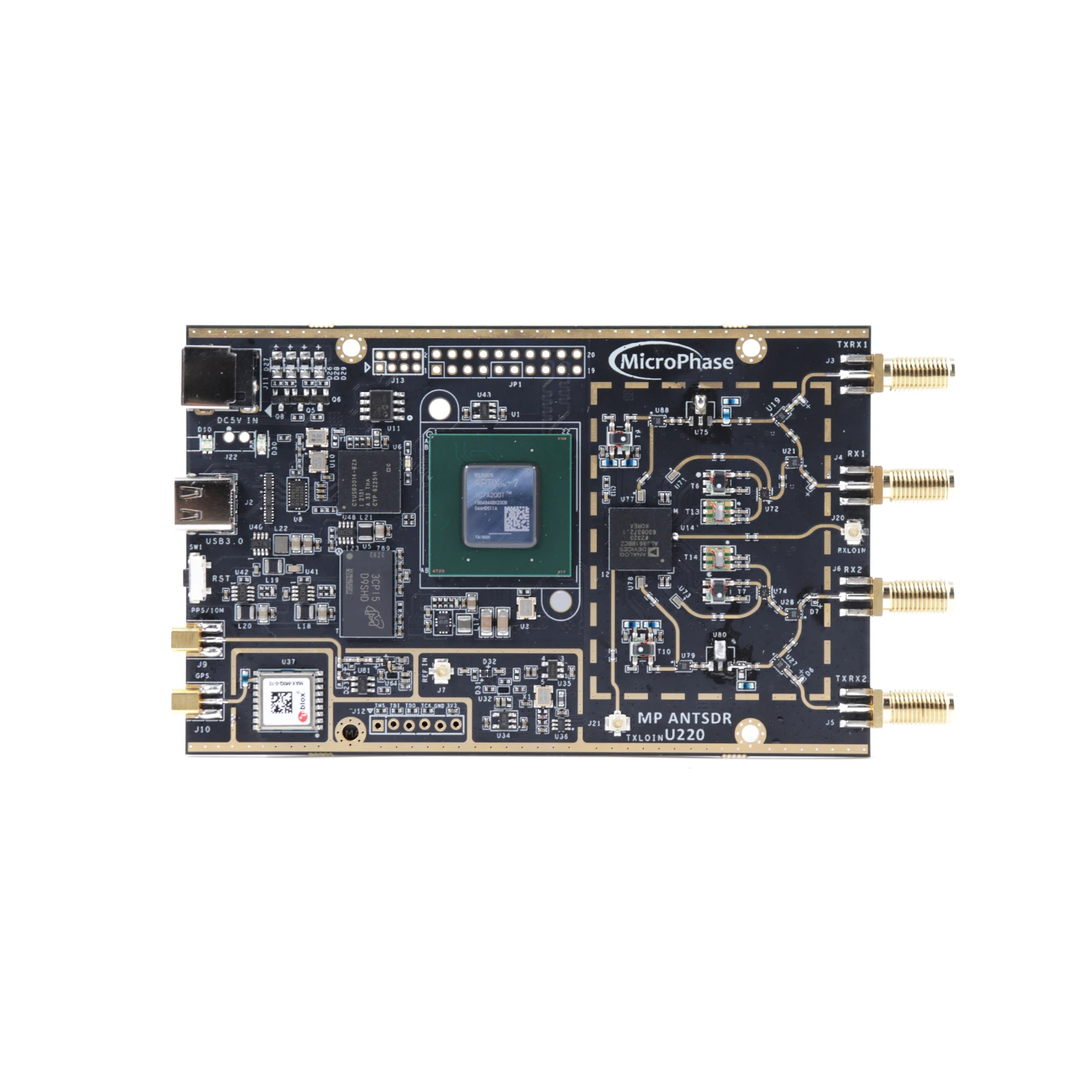

The ANTSDR U220 is a compact USB3.0 Software Defined Radio (SDR) transceiver featuring the ADI AD9361/AD9363 RFIC in a 2×2 MIMO configuration. It covers 70 MHz to 6 GHz with up to 56 MHz instantaneous bandwidth per channel and connects via high-speed USB 3.0 for real-time data transfer.

Key Features and Specifications

  • 2 TX/RX channels (2×2 MIMO, full-duplex)
  • Frequency range: 70 MHz–6 GHz
  • Bandwidth: up to 56 MHz per channel
  • FPGA: Xilinx Artix-7 (programmable DSP core)
  • ADC/DAC: 12 bit, 61.44 MSps
  • Transmit power: up to 10 dBm; noise figure < 8 dB
  • Clock: ±0.5 ppm VCTCXO
  • Power: USB-C, 2 – 6 W

Connectivity

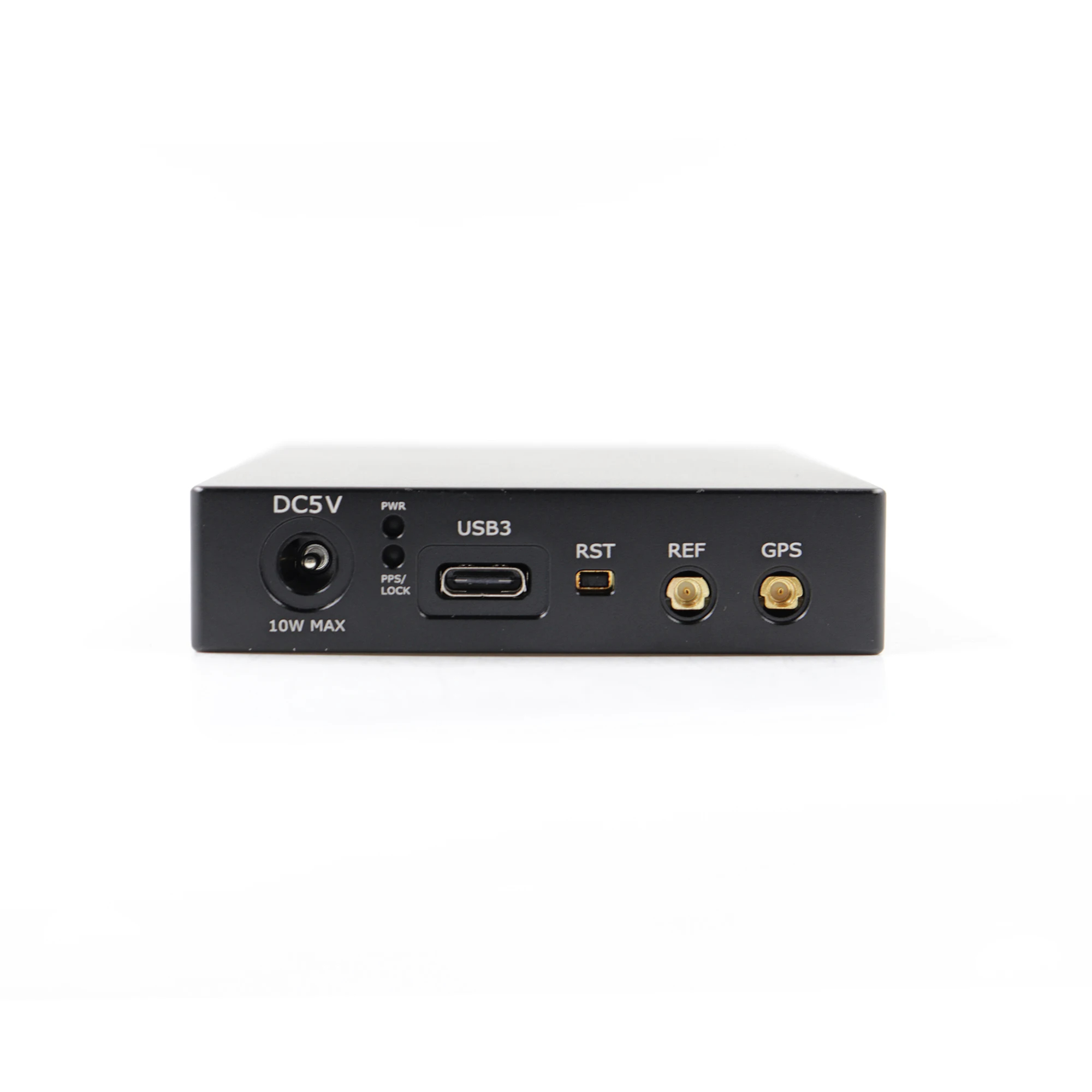

  • USB 3.0 (Type-C) host interface

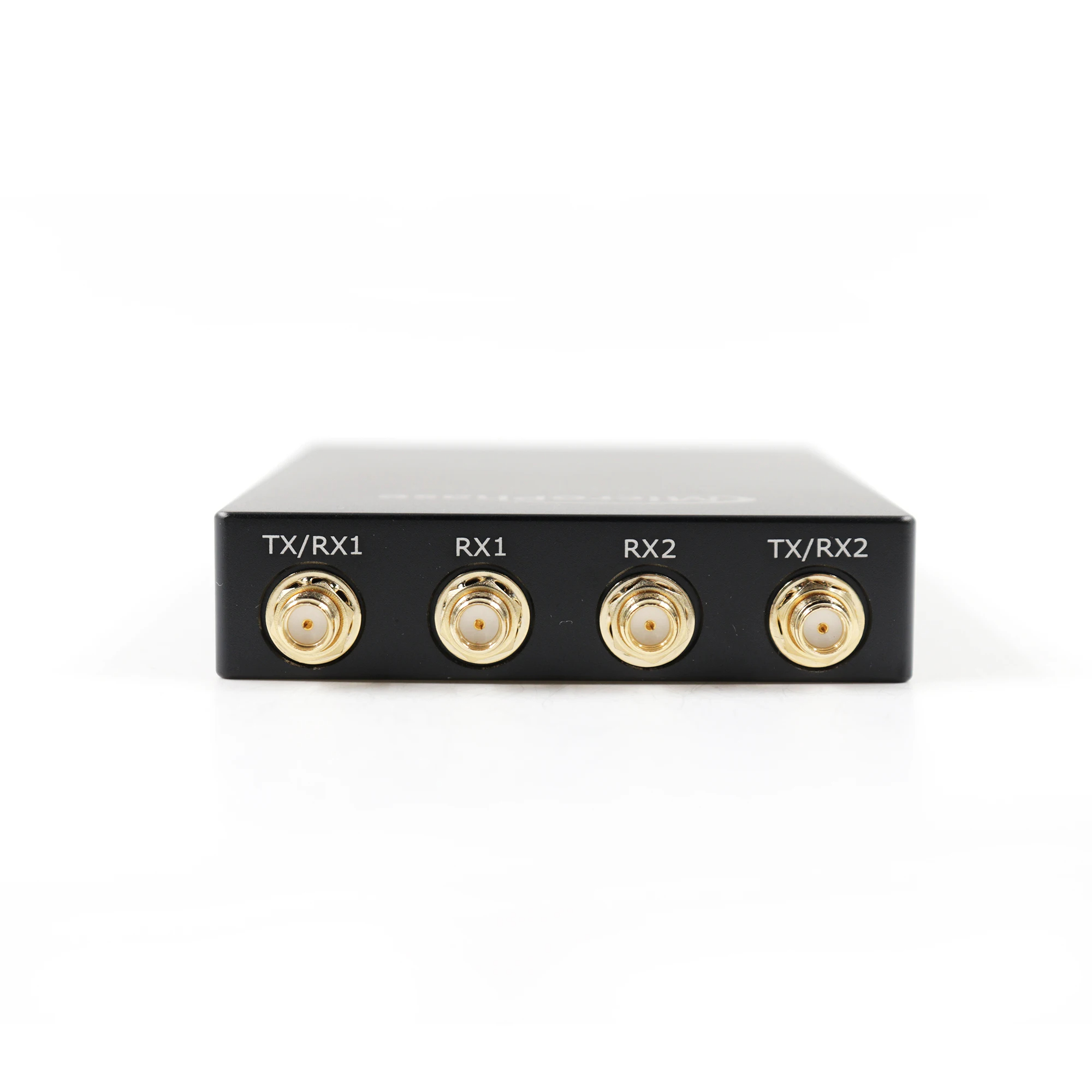

  • 4× SMA RF I/O connectors
  • Gigabit Ethernet (UHD streaming)
  • USB-JTAG & USB-UART
  • FPC GPIO & MMCX for PPS/GPS

Software & API

  • UHD API (USRP compatibility)
  • GNU Radio, Matlab Simulink (1R1T)
  • SDRangel, Gqrx, SDR#
  • Open-source: srsRAN, Open5G-PHY, gps_sdr_sim

Applications

  • Spectrum monitoring & analysis
  • Base station & UE simulation
  • Mobile radio & drone comms/detection
  • GPS timing & FM/TV broadcast
  • Cellular, WiFi, ISM band prototyping
Features
Brand Name
MicroPhase
Chipset
AD9363
Find similar
Products questions
Ask question

No questions yet

Reviews
5
5 Reviews: 2
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 star
0%
Jackson Reid
Verified purchase
5
Purchased 15x of the U220 with the AD9361 chip for our company. As of now, we just received the products from SDRstore, and everything is well. The customer service responses were fast and helpful. They went above and beyond and sent the products in multiple packages to avoid taxes for us, as we are not located in the EU. Would definitely recommend this store, and we will be coming back! :)
Advantages
The package came well packaged, and there was no damage to any of the devices. The devices contain the specified chip, as we checked all.
Disadvantages
None
Helpfull?
1
Share
Holger Schenk
Verified purchase
5
Fast delivery to germany, received the parcel in 6 days after it was shipped.
Helpfull?
1
Share
